High current Type Capillary thermostat with 2 terminals

FOB Reference Price:Get Latest Price
$1.11 - $1.15 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Quick Details
Other Home Appliance Parts, WYE High Temperature Series
Place of Origin:
Guangdong, China
Brand Name:
Model Number:
Capillary theromost WYE series
Oven,Air fryer, Deep fryer,Electric water heater, water boiler
Temperature control
≥100,000 times
Rated voltage/Current/Frequency:
125/250VAC 16A 50/60Hz
Product name:
High-tech SPDT Type thermostat with I terminals
Supply Ability
Supply Ability:
30000 Piece/Pieces per Day High-tech SPDT Type thermostat with I terminals
Packaging & Delivery
Packaging Details
Standard export packaging (bubble mould box with outer carton)
ctn size:54cm*38.5cm*40cm
OEM is available for High-tech SPDT Type thermostat with I terminals
Shunde, Zhongshan, Guangzhou
Product Description

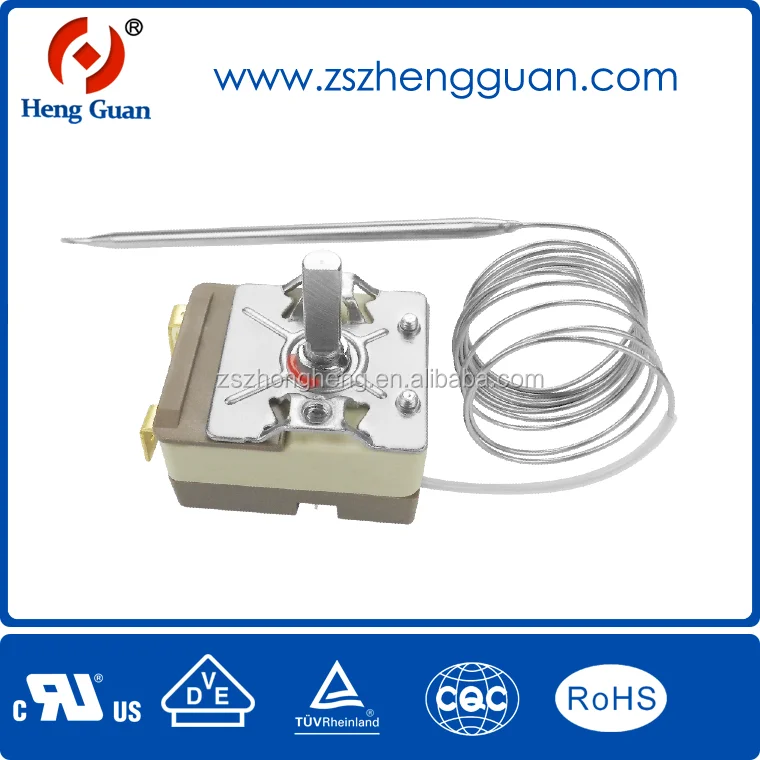

High-tech SPDT type thermostat with I terminals

About Thermostats

OUR Company adopted foreign and domestic advanced technology to develop following series .Many have been passed CQC,TUV,UL,VDE,ISO certificate.
1.WYE series high temperature adjustable thermostat.
2.WQS series manual reset limiter
3.LWP series low temperature thermostat
There are mainly suitable for oven, deep fryer, air fryer, electric water heater, electric boiler and so on

1.High-tech SPDT type thermostat with I terminals
WYE thermostat high temperature series
Rated voltage/current/frequency
125/250VAC  16A  50/60Hz
Electrical strength
Insulation resistance
Ambient temperature
100000 times
Switch mode
Adjusting shaft length
Length od capillary
300-8000mm(Stainless steel capillary and sensing tulb)
On-odd temperature different
Oven,deep fryer, electric water heater, electrical boiler and so on
Temperature control

Why you choose us

1.Many products have been passed CQC, TUV, UL, TUV, VDE certificate.
2.The thermostat annual output is over 15,000,000pcs.
3.Midea and Walmark stable supplier.
4. We not only have our own factories, R&D team and foreign trade team , has rich experience in foreign trade, but also have their own patents.
5.All products must be strictly inspected according to ISO9001 standard before they leave the factory.
6.There are 8 ISO management production lines.
7.The important processes have been implemented using automated equipment production, the future will be to implement all automated production.
8. The high tech product company.
9.We can accept OEM or ODM order

Related recomment

     Thermostat recomment NO.1

       Name: WYF series thermostat

       Brand: Heng Guan

       Specifiation:stainless steel capillary and sensing tube
       Function: Temperature control
       Specail for : oven, deep  fryer, air fryer with better effect                                    than WYE series for less reset temperature.

Thermostat recomment NO.2

Name: WQS series thermostat
Brand: Heng Guan
Reset temperature:Manual reset
Function: Over temperature protection
Specail for : oven, deep fryer, air fryer, electric boiler and so                           on

      Thermostat recomment NO.3

        Name: WQB series thermostat

        Brand: Heng Guan
        Reset temperature:Manual reset
        Function: The poles breaking protection
        Specail for : Electric water heater, electric boiler, steam                                    cabinet

Thermostat recomment NO.4

Name: LWDF series thermostat

Brand: Heng Guan
Temperature range:-40~70°C
life: 200,000 times
Specail for : Two-door direct cooling freezer

The enterprise adopted foreign and domestic advantaged technology to develop into 4 items, Many products have been passed CQC, TUV, UL,TUV, VDE certificate. Our products have been enjoyed considerate popularity and reputation because of the excellent performance.

Our Company

1. Do you provide free samples? How long will the samples be ready?
Yes. Samples are FREE. You just need to pay the delivery cost.
Usually, we need 7 days to prepare samples.

2. Can I have your pirce list?

Sorry, price list is not available. All of our products are customized. We need to know the cable
size, length and other specifications to count the prices.

3. What is your shipping method?

We will help you to choose the best shipping method according to your orders. If you have pointed forwarder in China, we will help to arrange the shippment ASAP.

4. What is your payment term?
T/T. 30% deposit, 70% before delivery
